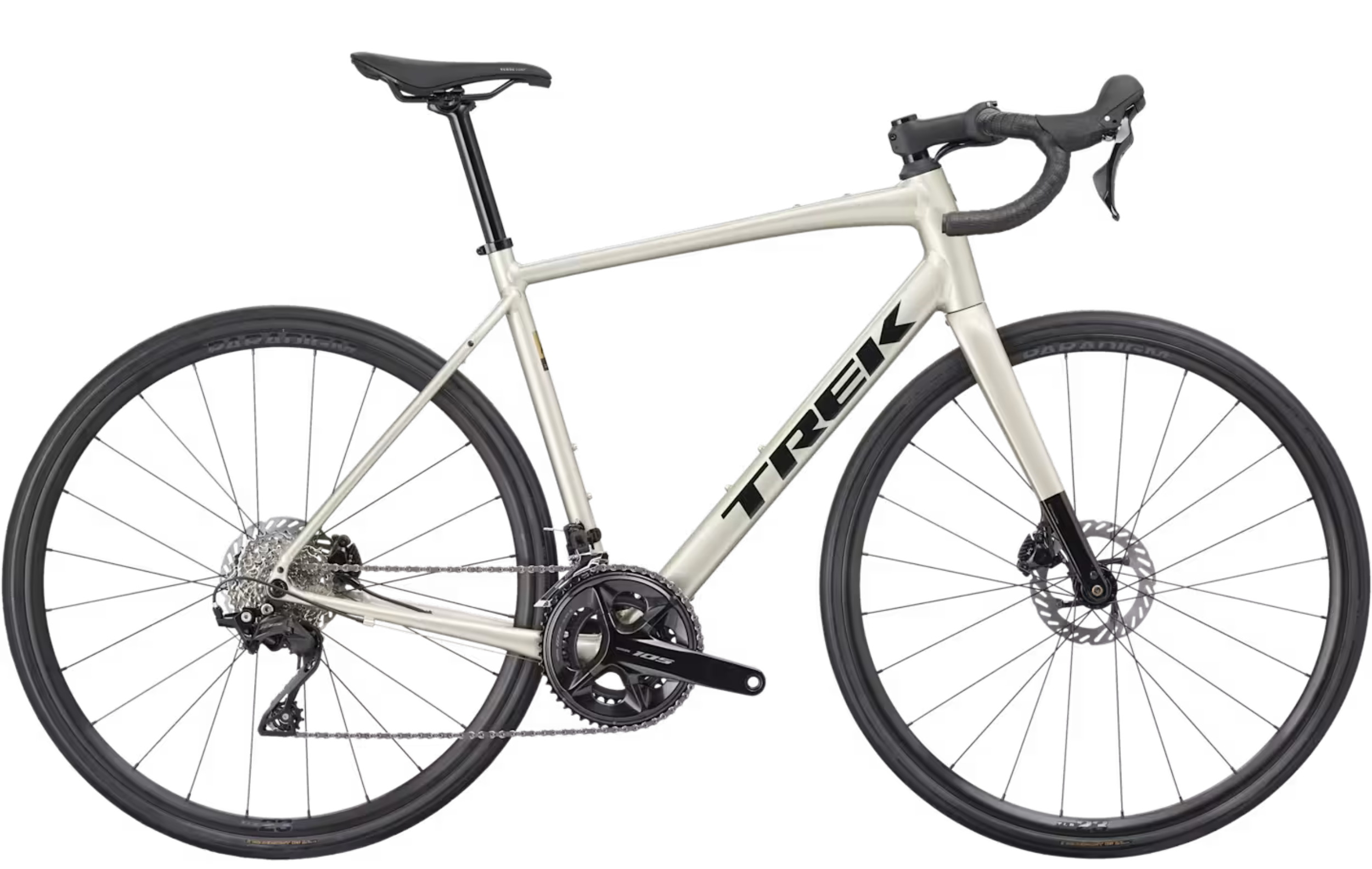

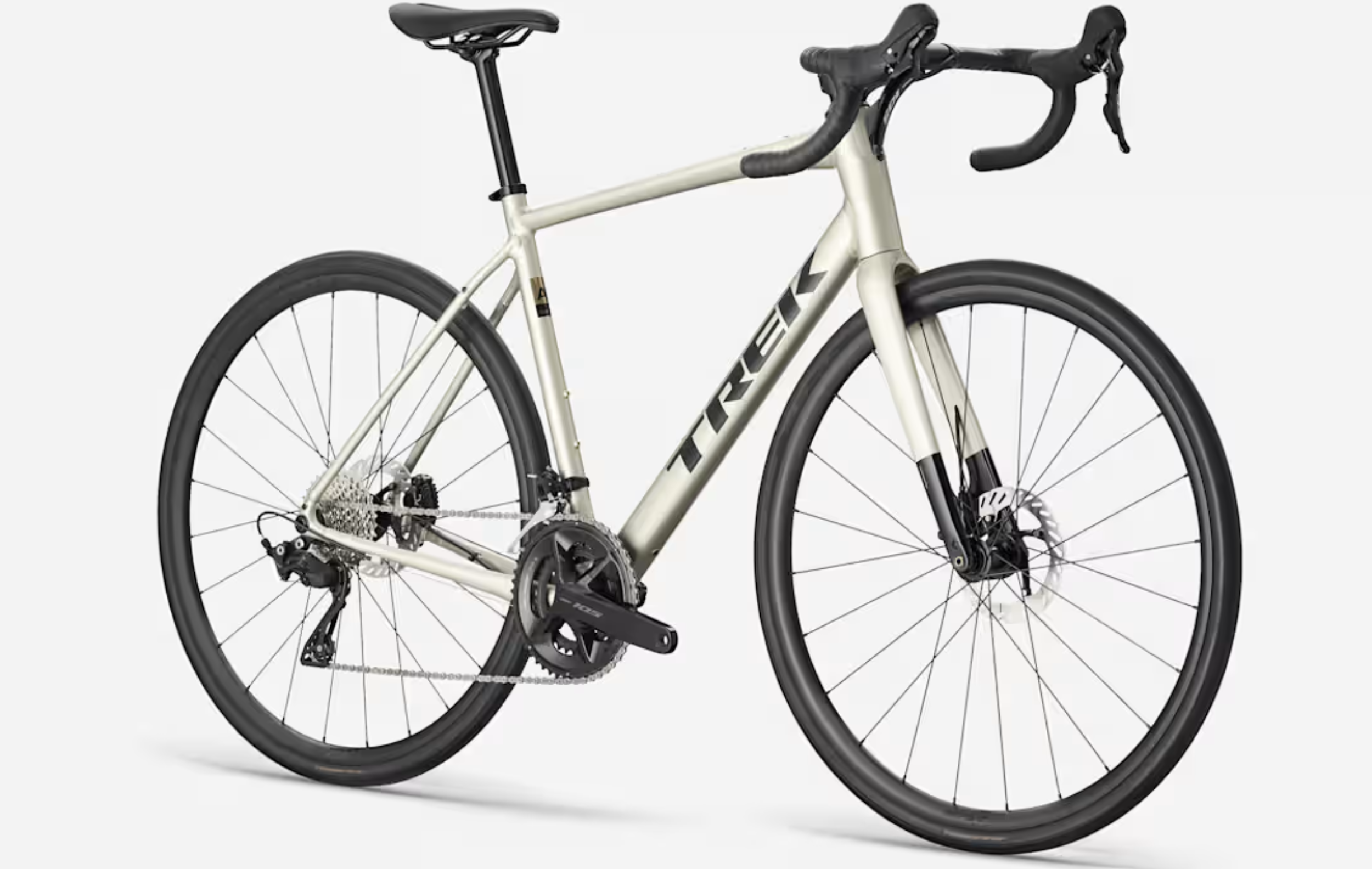

Trek Domane AL 5 Gen 4 (Gloss Supernova) - 2027

Need Assistance?
This product cannot be purchased online at the moment. Please call or WhatsApp us at +91-93562 55304 to speak with our Product Specialists for personalized assistance.

Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding.

Features

• With an Alpha Aluminum frame, clearance for larger tires, a 12-speed Shimano 105 drivetrain, top tube mounts, and an all-day road comfort geometry
• Domane AL 5 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.
• A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
• Room for bigger tires let you ride everything from smooth pavement to most gravel roads in comfort.
• A more upright road riding position keeps you comfortable, confident, and efficient during long days in the saddle.

Specifications

• Intended Use- Road
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Aluminium
• Fork Material- Carbon

Components

• Frame- 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle


• Fork- Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle


• Bottom Bracket- Size: 49, 52, 54, 56, 58, 61 Shimano RS501 BSA |
  Size: 49, 52, 54, 56, 58, 61 Shimano RS500, 68mm, threaded external


• Chain- Shimano SLX M7100, 12 speed


• Crank- Size: 49, 52 Shimano 105 R7100, 50/34, 170mm length |
  Size: 54, 56 Shimano 105 R7100, 50/34, 172.5mm length |
  Size: 58, 61 Shimano 105 R7100, 50/34, 175mm length


• Shift Levers- Shimano 105 R7120, 12 speed


• Cassette- Shimano 105 7101, 11-34, 12 speed


• Front Derailleur- Shimano 105 R7100, 31.8mm clamp, down swing


• Rear Derailleur- Shimano 105 R7100, 36T max cog


• Grips/Bartape- Bontrager Supertack Perf tape


• Handlebar- Size: 44 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width | Size: 49, 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width | Size: 54, 56, 58 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | Size: 61  Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width


• Stem- Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length


• Saddle- Verse Short, steel rails, 145mm width


• Seatpost- Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length | Size: 52, 54, 56, 58, 61
  Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length


• Front Brake- Shimano 105 hydraulic disc, flat mount


• Rear Brake- Shimano 105 hydraulic disc, flat mount


• Front Wheel- Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve, Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle


• Rear Wheel- Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve, Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle


• Tire- Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm


• Pedal- NA


• Weight(Apprx)- 9.85 kg

Sizing

Additional Info

• Country of Origin: China
• Imported By: Trek Bicycle India Pvt Ltd , Ground Floor , Unit 17 & 18 , Bestech Business Center , Badshahpur Sohna Rd Hwy , Sector 48c, Gurugram , Haryana - 122001 , India.
• Net Quantity: 1N
• Customer Care Address: Chanduram Road, H.335, Janta Chowk, Main bazaar, Jaripatka, Nagpur -440014 E-mail: support@ashamall.in
• Commodity: Bicycles
