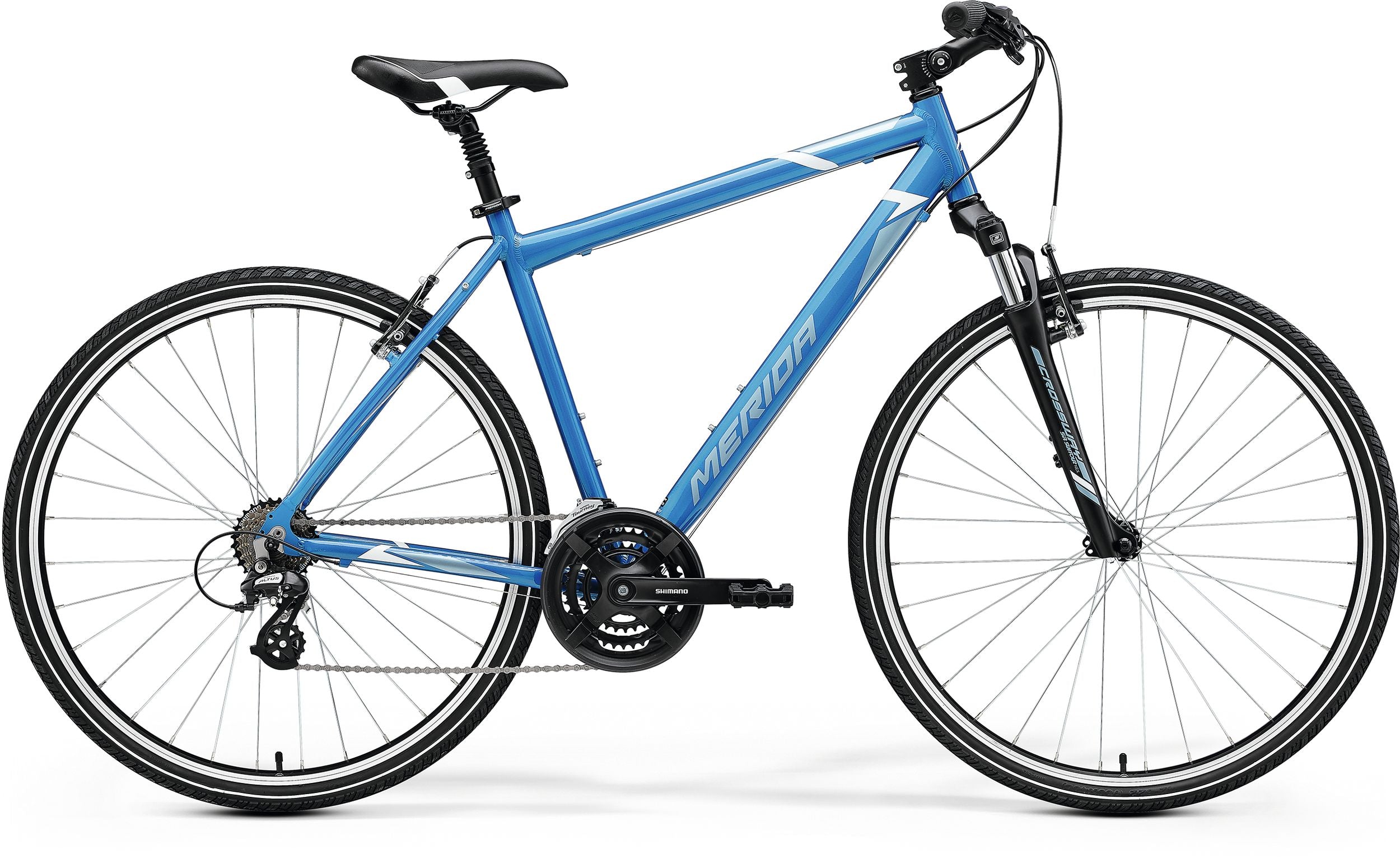

Merida Crossway 10-V (Steel Blue/White)
Sale price
Rs. 37,490.00
Regular price
Rs. 39,990.00
Entry level trekking/hybrid bike equipped with reliable V-brakes and suspension forks at an attractive price point. Your reliable companion around town and cross country.
Features
- Lightweight aluminium frame with comfort geometry
- Multiple fixing points for rear rack and fenders
- Shimano drivetrain
Specifications
- Intended Use- Comfort
- Wheel Size- 700c
- Braking System- Rim
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- CROSSWAY DT material: aluminium 700x42C max. wheelsize 135x9mm axle standard BSA bottom bracket standard
- Fork- SR Suntour NEX Coil 63mm suspension travel 700x50C max. wheelsize
- Bottom Bracket- FSA TH-7420ST-W, CARTRIDGE BEARING
- Chain- KMC NS8
- Crank- Shimano TY301 48-38-28 teeth 170 mm-XXS/SM, 175 mm-ML/XXL
- Shift Levers- Shimano ST-EF500
- Cassette- Shimano MF-TZ500 14-28 teeth 7 speed
- Front Derailleur- Shimano FD-TY510
- Rear Derailleur- Shimano RD-M310
- Grips/Bartape- MERIDA EC
- Handlebar- MERIDA CC material: steel 620mm width 30mm rise
- Stem- MERIDA TK material: aluminium 25.4mm diameter adjustable 100 mm
- Saddle- MERIDA CROSS SPORT
- Seatpost- MERIDA TK 27.2mm diameter 13mm setback 40mm seatpost suspension travel
- Front Brake- PROMAX MTV-117A
- Rear Brake- PROMAX MTV-117A
- Front Wheel- MERIDA CC, JOYTECH JY-751DSE / JOYTECH JY-752DSE 100x9mm width front hub 32 spoke holes
- Rear Wheel- MERIDA CC, JOYTECH JY-751DSE / JOYTECH JY-752DSE 135x9mm width rear hub 32 spoke holes
- Tire- MERIDA K1171 700x40C wire
- Pedal- VP VPE-891
Geometries
| Frame Size | S | S/M | M/L |
| Tire Sizes | 28" | 28" | 28" |
| St Seat Tubes Mm | 460 | 480 | 520 |
| Tt Top Tubes Mm | 575 | 585 | 595 |
| Cs Chain Stays Mm | 450 | 450 | 450 |
| Hta Head Tube Angles Deg | 71.5 | 71.5 | 72 |
| Sta Seat Tube Angle Deg | 73.5 | 73.5 | 73.5 |
| Bd Bottom Bracket Drops Mm | 70 | 70 | 70 |
| Ht Head Tube Lengths Mm | 125 | 135 | 135 |
| Fl Fork Lengths Mm | 450 | 450 | 450 |
| R Reachs Mm | 397 | 405 | 414 |
| S Stacks Mm | 599 | 609 | 611 |
| Wb Wheel Base Mm | 1072 | 1082 | 1087 |
| Sh Stand Over Height Mm | 727 | 743 | 774 |
