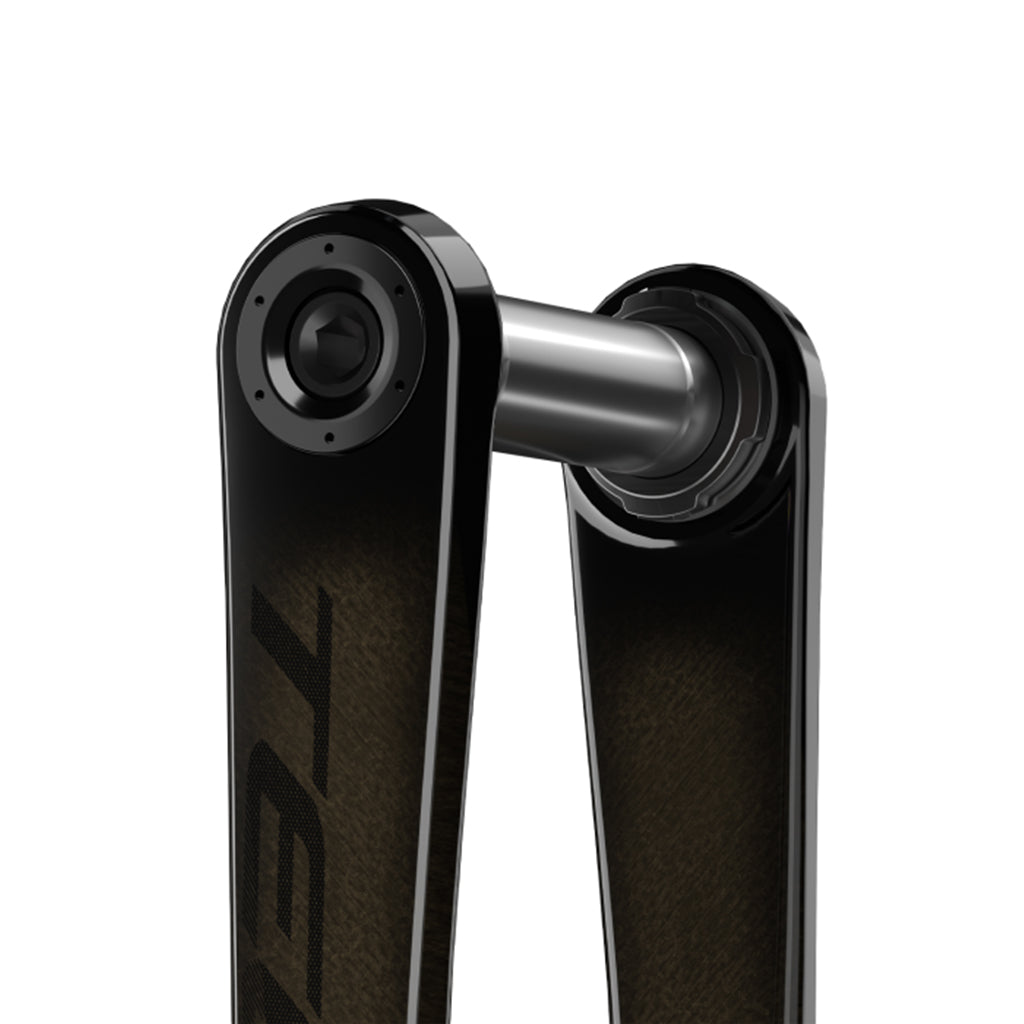

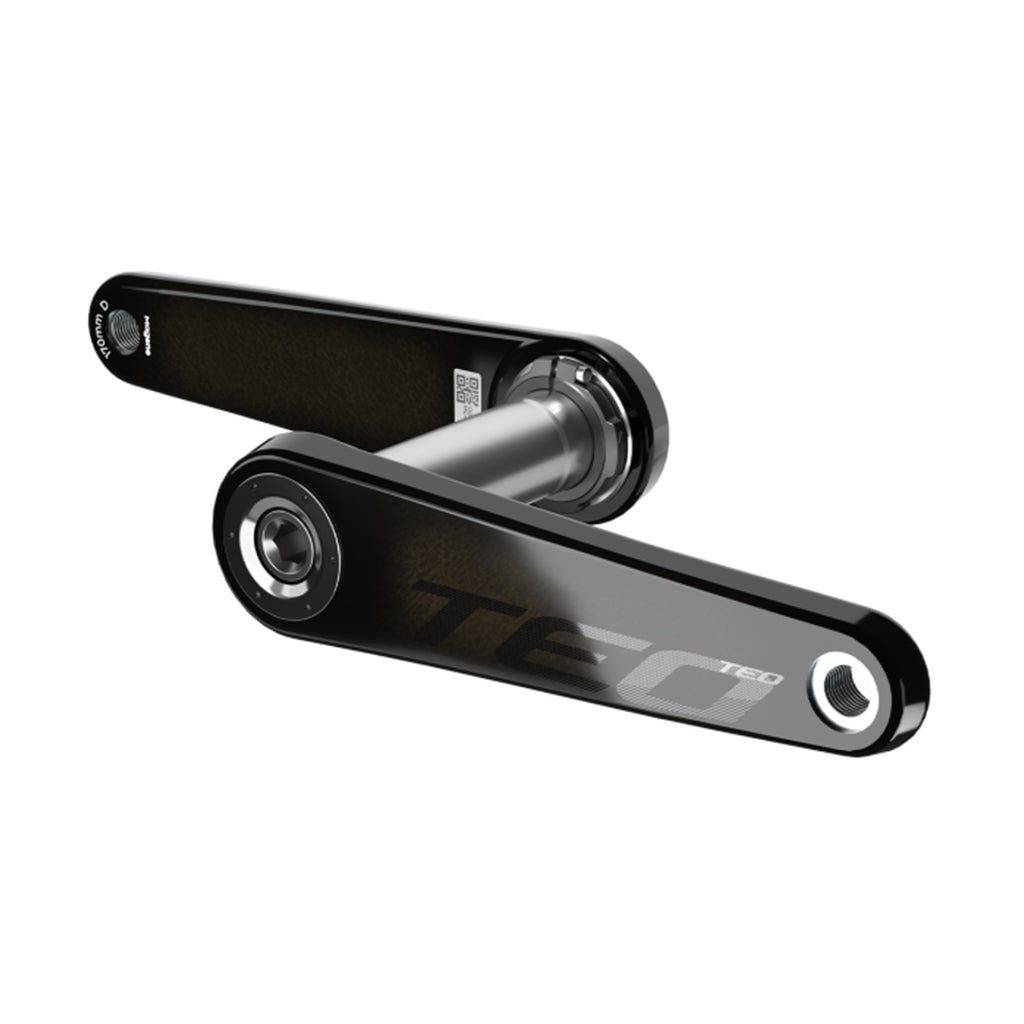

Magene TEO Carbon Crank

Product Description

Magene TEO series adopt cutting-edge design, premium materials and exquisite techniques, providing extraordinary weight and mechanical performance. Our products empower athletes to continuously break through, unleash full potential and achieve ultimate performance in every competitive race.

Weighing just 325g, the HI-MOD carbon TEO crank delivers explosive acceleration with its dual-channel high-pressure construction. Rigorous 1500N stiffness testing ensures minimal flex, while the 29mm 7075 aluminum spindle balances lightweight durability and peak power transfer. Engineered for racers—stiff, light, relentless.

The dedicated card slot can only be compatible with Magene's spider-type power meters, such as P505 and P515.

Features:

• Carbon fiber made crank achieves balance between light weight and high stiffness.
• DUB spindle ensures better overall performance
• 325g lightweight design, rapid response to every acceleration
• Custom-build with QED split chainrings for crisp shifting and smooth flow.

Specifications:

• Model: TEO Carbon Crank
•  Ave.Weight: 325g±10g (170mm)
• Crank Length: 160mm, 165mm, 170mm, 172.5mm, 175mm
• Spindle: 29mm
• Chainline: 44.25mm
• Q-Factor: 148mm
• Warranty: 1 year

In the Box:

• TEO carbon crank x2
• Lock Ring of Conversion Kit
• Washer x5
• Quick Start Guide

325g Lightweight Design, Rapid Response to Every Acceleration

Crafted from premium HI-MOD carbon fiber, the TEO carbon crank feature an innovative dual-channel high-pressure forming process, which minimizes weight to the greatest extent. With a sleek profile and an ultra-lightweight of just 325g, the crank deliver exceptional acceleration performance, helping you break away in competitive races.

*170mm crank weigh 325g and the data comes from Magene lab.

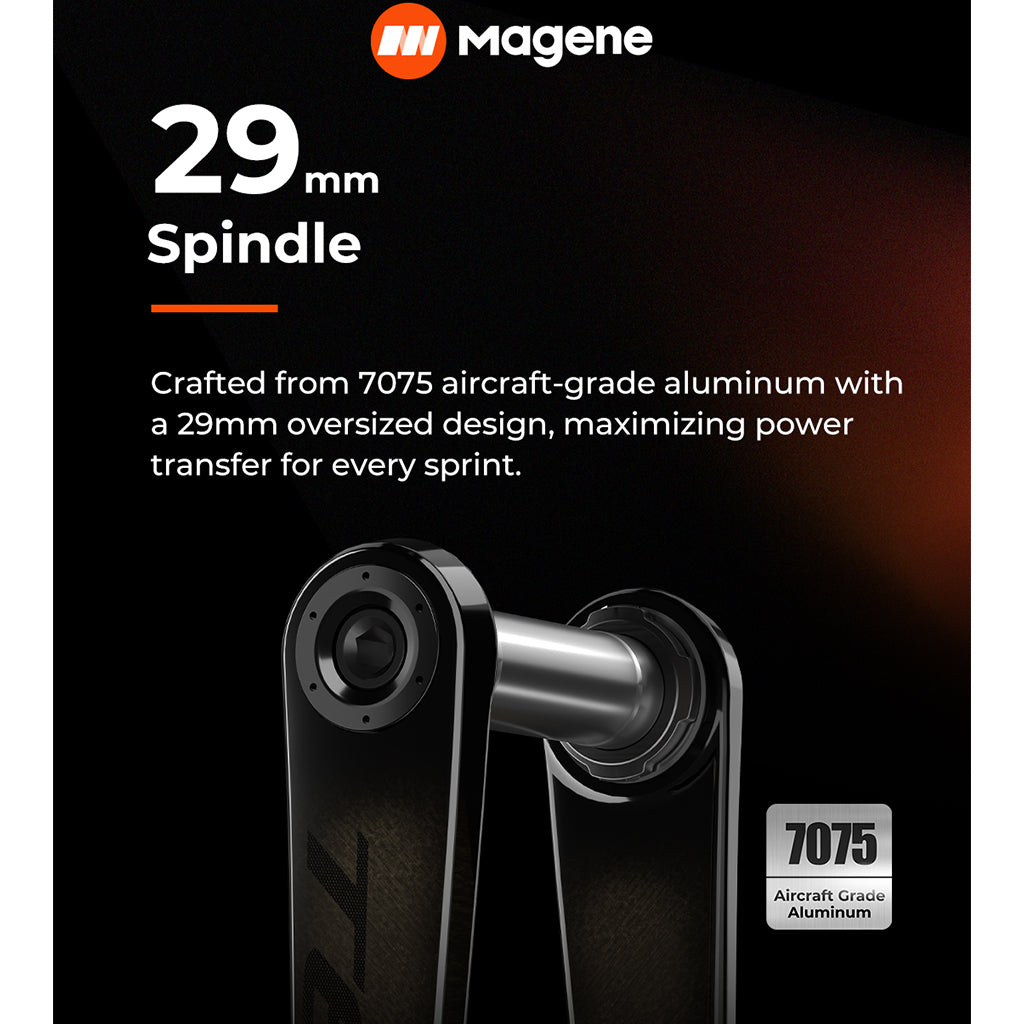

29mm Spindle, Exquisite Balance among Stiffness, Weight and Durability

Spindle is an important structure connecting the frame, and its design technology has a vital influence on the drivetrain efficiency and durability.

TEO spindle is made of 7075 ultra-light aircraft-grade aluminium. The 29mm larger diameter design of has lighter weight, better stiffness and better waterproof performance than the common 24mm steel spindle. The reliable and outstanding performance empowers racers to unleash full sprint potential and sustain peak power output.

Ultra-High Stiffness, Uncompromising Pedaling Rigidity

The TEO carbon crank undergo standard compression testing, with a force of 1500N (≈153 kg) applied to each pedal side (35mm position) to measure displacement.

The test proves TEO carbon crank exhibit minimal deformation, demonstrating exceptional stiffness. Rigorously tested, the TEO carbon crank maintain an outstanding stiffness-to-weight ratio without sacrificing ultra-lightweight performance. Every pedal stroke delivers unwavering confidence and your power output is never diminished.
